Electric drive
Tank and reactor cleaner

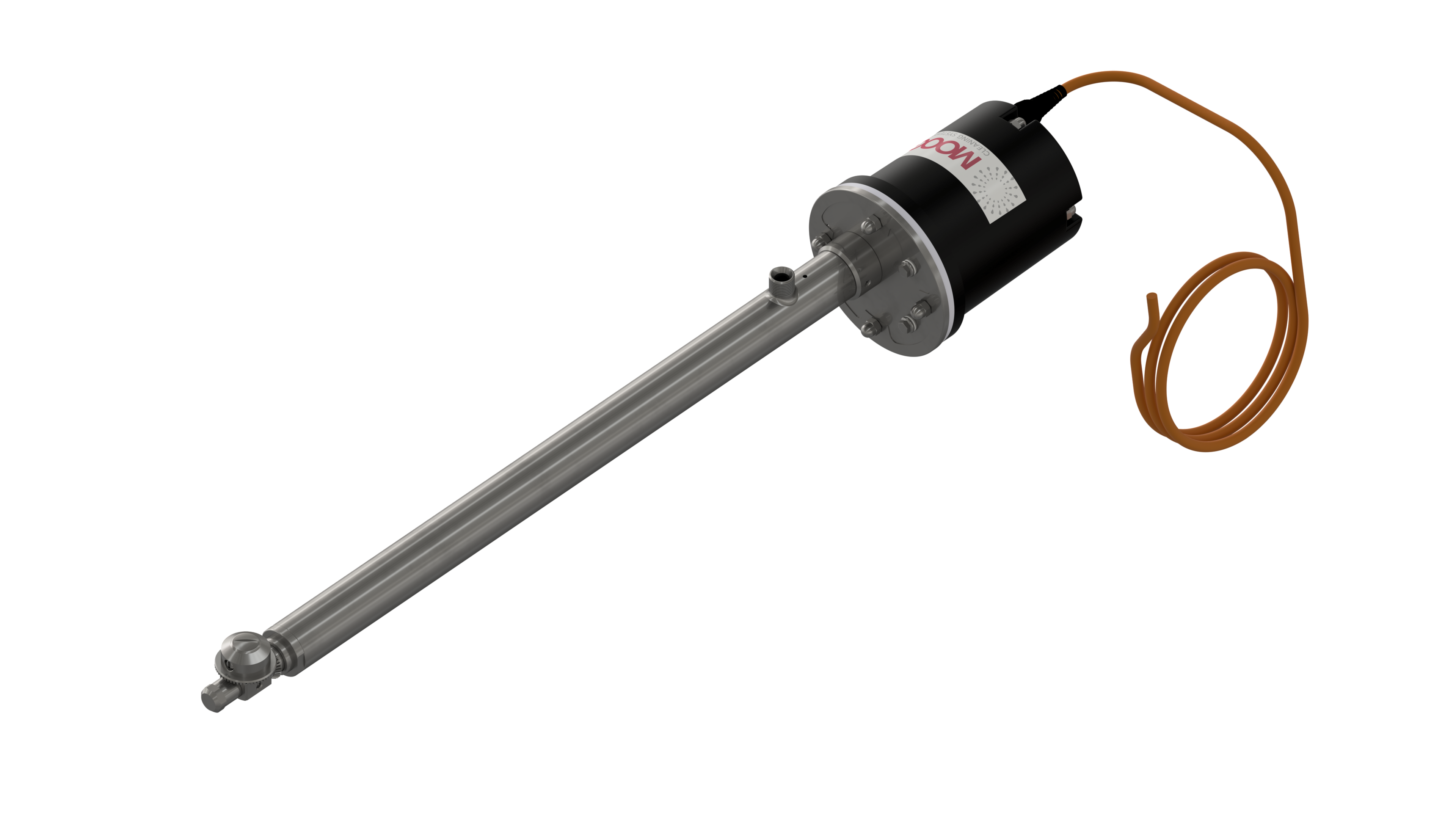

ER40 Cleaning head compact with electric drive

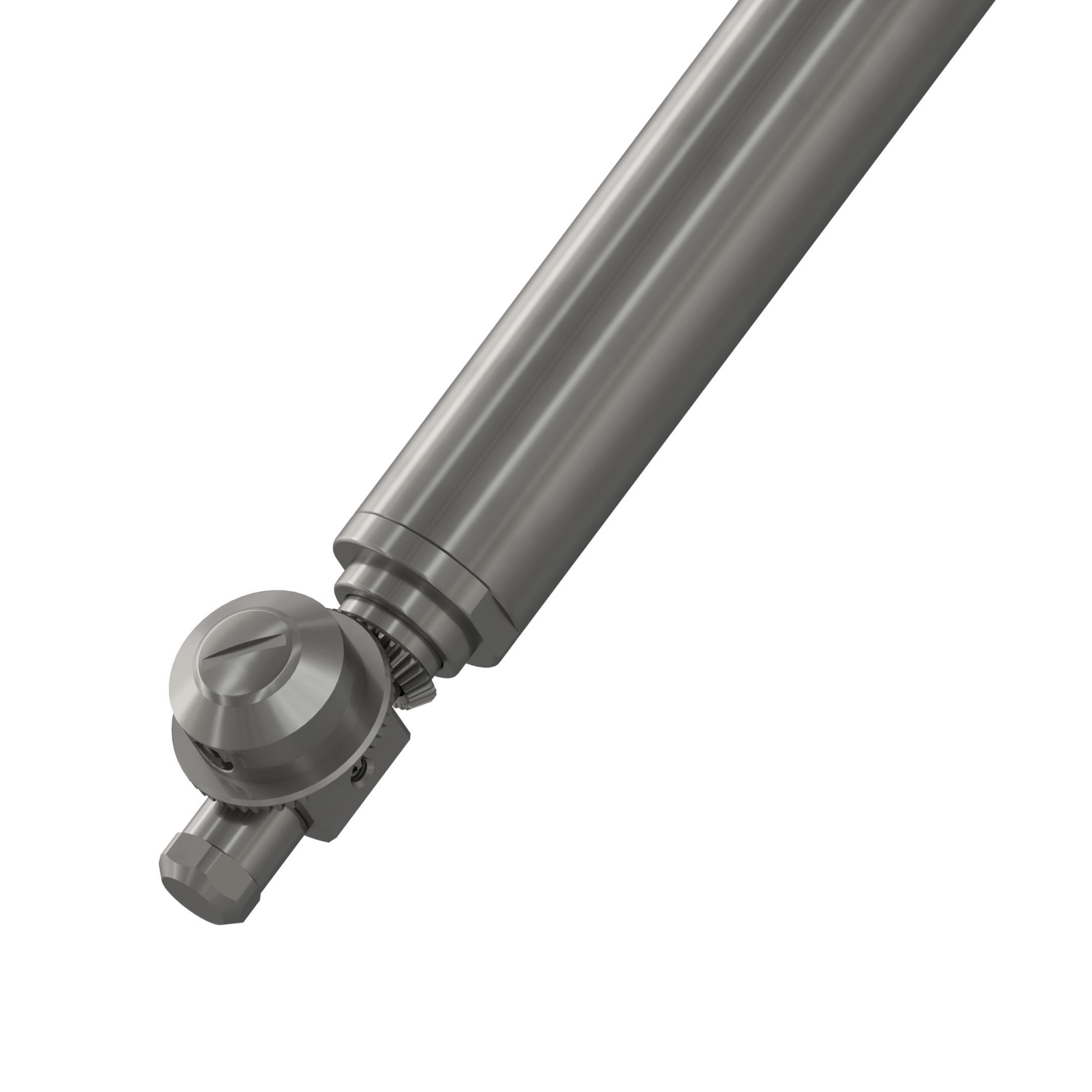

The R40 cleaning head has a three-dimensional rotating spray head with 360° jet coverage. The spray head can be used universally and is very compact with a head diameter of 40 mm. The high-pressure nozzles are built into the head housing of the tank cleaner. The ER40 tank interior cleaner consists of a cleaning head, an electric drive and a connecting tube.

Technical Specifications

  • Cleaning head

    R40 R40
  • Drive

    Electric Electric
  • Min. working pressure

    100 bar 100 bar
  • Max. working pressure

    200 bar 200 bar
  • Min. water quantity

    10 l/min 10 l/min
  • Max. water quantity

    50 l/min 50 l/min
  • Beam coverage

    360° 360°
  • Max. temperature

    90°C 90°C
  • Connection

    M22x1.5 / G1/2” / G3/8” M22x1.5 / G1/2” / G3/8”
  • Nozzles

    2 / 4 ; 0° / 5° / 15°; 1/8“ 2 / 4 ; 0° / 5° / 15°; 1/8“
  • Speed

    10-30 rpm 10-30 rpm
  • Material (head and tube)

    AISI 316 INOX AISI 316 INOX
  • Material seals

    FPM Viton FPM Viton
  • Installation data

    > Ø50 mm > Ø50 mm
  • Article number

    ER40.STD ER40.STD
