Stationary barrel cleaning

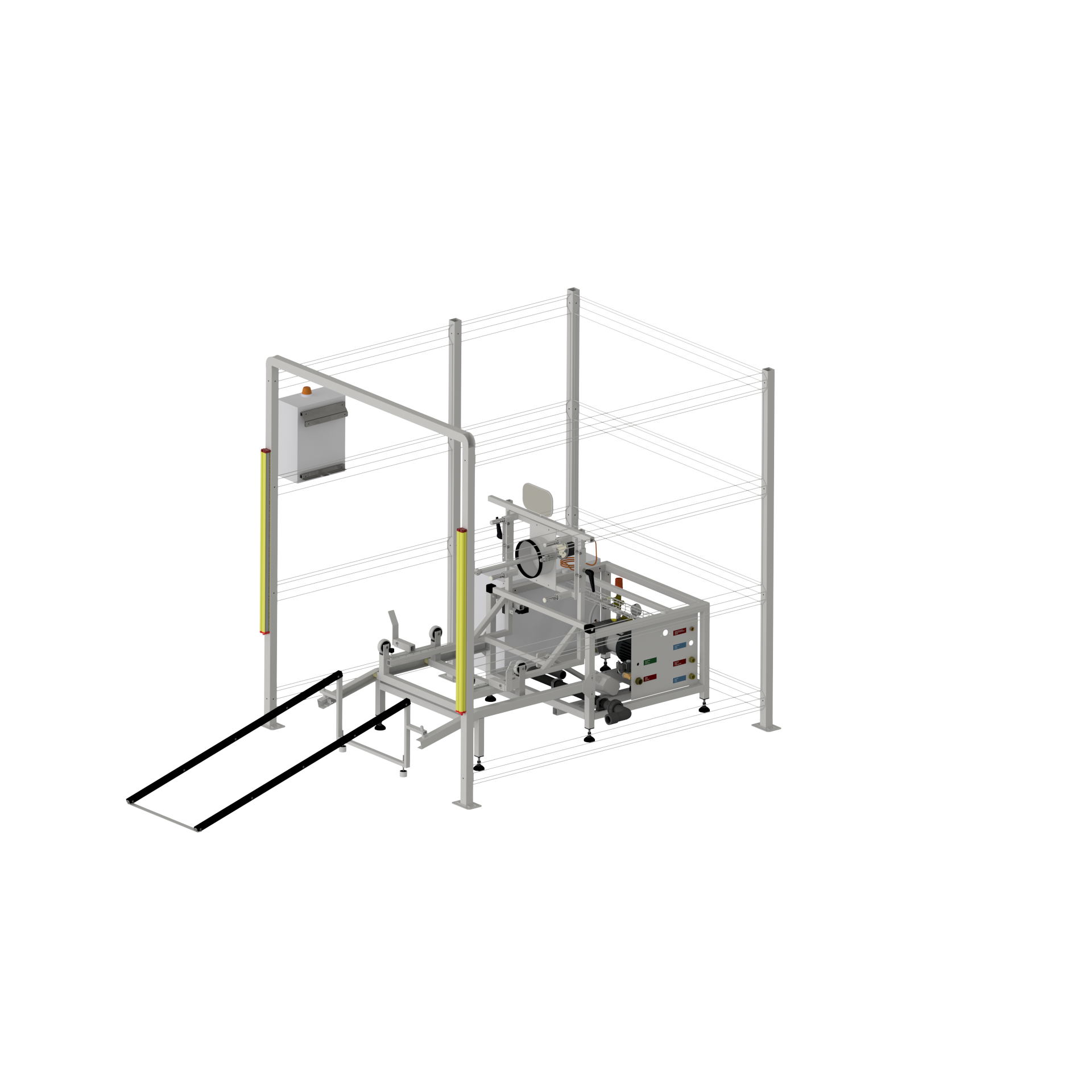

Monoplex Barrel cleaning system

The FR Monoplex barrel cleaning system cleans one barrel and offers unrivalled ease of use. The wine barrels are loaded manually, but the barrels are lowered into the cleaning position automatically. The cleaning process can be programmed via the touchscreen. After cleaning, the barrels are automatically raised back to the unloading position.

Technical Specifications

  • For barrels

    225-600L 225-600L
  • Drive

    VAC 400 VAC 400
  • Flow rate

    15 l/m 15 l/m
  • Working pressure

    100-110 Bar 100-110 Bar
  • Working temperature

    60°C 60°C
  • Rotational speed

    17-18 rpm 17-18 rpm
  • Min. inlet pressure

    3 Bar 3 Bar
  • Max. inlet pressure

    5 Bar 5 Bar
  • Nom. diameter of inlet pipe

    DN20 DN20
  • Article number

    PR.000.050 PR.000.050
