LPO-A50 / A90
Low pressure

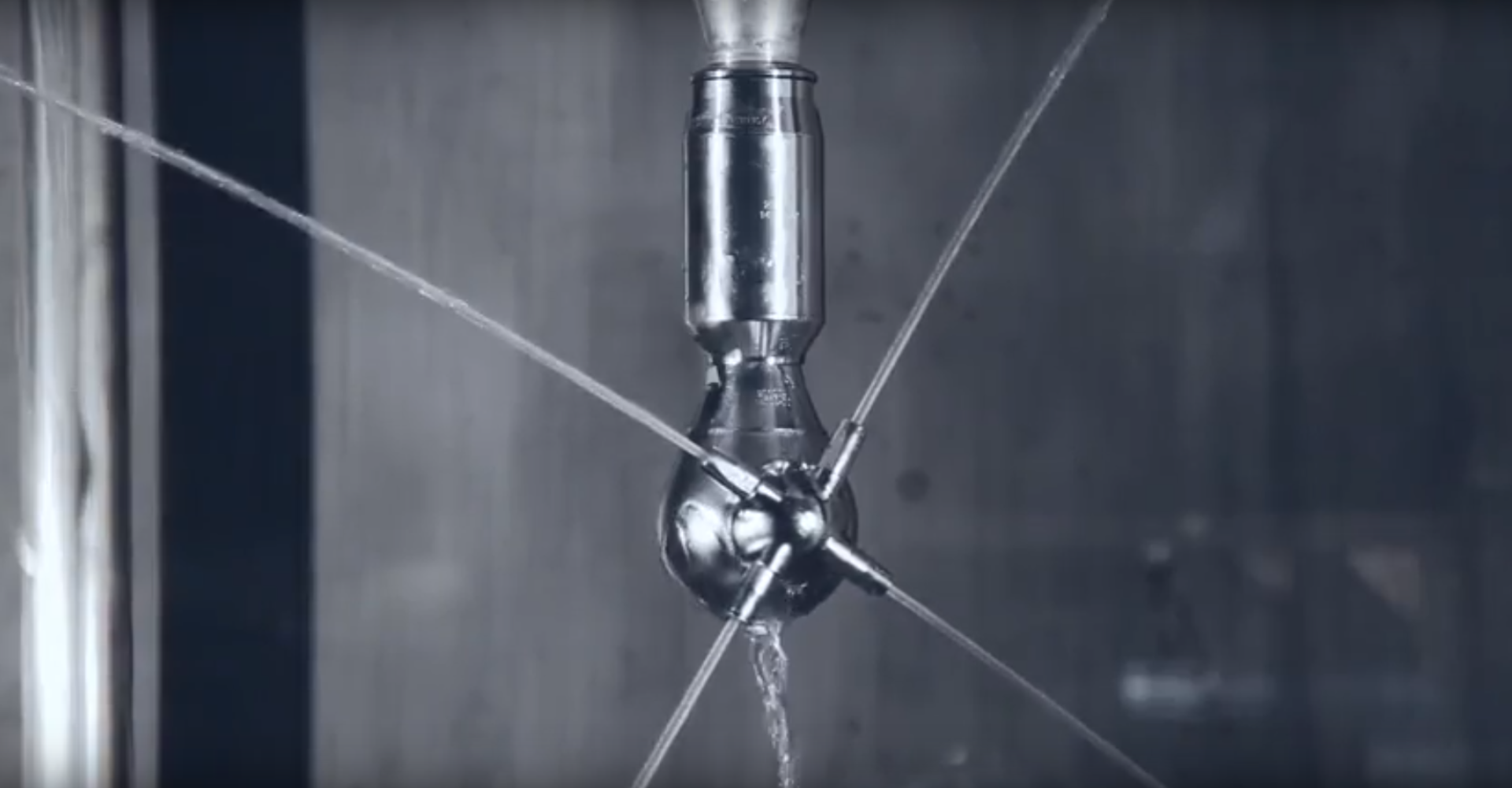

LPO-A50 / A90 Low Pressure Orbital
The LPO-A50 / A90 rotary jet heads offer three-dimensional jet guidance for complete internal cleaning in a defined time.
The two-dimensional movement is generated without a separate drive by the cleaning medium using a smooth-running mechanism. Thanks to a wide range of nozzles, a large pressure range and high efficiency, the LPO-A is versatile and achieves excellent cleaning results. Even difficult, angled geometries are reliably cleaned.
The special design, the use of high-quality materials and the exceptionally precise manufacturing make the rotary jet head durable and easy to maintain.
Highlights
•Three-dimensionaljet guidance with complete coverage
•Drivenby cleaning medium with low pressure loss
•Highimpact force for stuck crusts and deposits
•Variousnozzle sizes for adjusting the flow rate
•Flexible, simple installation
•Long-lastingand low-maintenance thanks to high-quality materials
•Self-cleaning
Technical Specifications
-
Cleaning radius max.
6m / 10m 6m / 10m -
Tank opening min.
Ø65mm / Ø125mm Ø65mm / Ø125mm -
Max. operating pressure
12 bar / 15 bar 12 bar / 15 bar -
Flow rate
90-250 l/min 90-250 l/min
-
Operating temperature max.
95°C 95°C -
Standard material
1.4404 1.4404 -
Connection
3/4" / 1 1/2" thread 3/4" / 1 1/2" thread -
Available certificates
3.1, ATEX 3.1, ATEX -
Article number
81.2570.00 / 81.2571.00 81.2570.00 / 81.2571.00
